Heat exchanger
Plate type
- Heat exchanger
- Please refer to “Product Drawings” and “Product Specifications” for detailed information such as materials of each part.
- Please refer to the “Installation Instructions” for installation procedures.
Applications and Features
Features

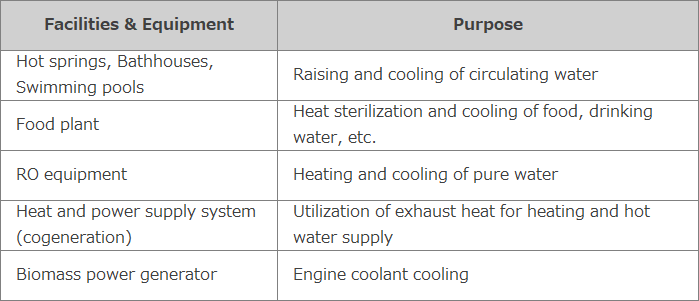

Examples of Applications
Specifications & Features
Unique plate shape
The plates are pressed into a proprietary corrugated shape that creates turbulent conditions essential for heat transfer.
Low dirt adhesion
The corrugated shape of the plate surface causes the cross-sectional area of the flow path to expand & contract repeatedly, promoting turbulent flow & minimizing the adhesion of dirt.
Flexibility
By changing the number of plates, the system can flexibly respond to changes in operating conditions.
Easy to clean
The simple structure allows for easy disassembly & cleaning.
Things to note
- If the operating pressure exceeds 1 MPa, please consult us separately.
- If steam is used, please consult us separately.
